Water level gauge

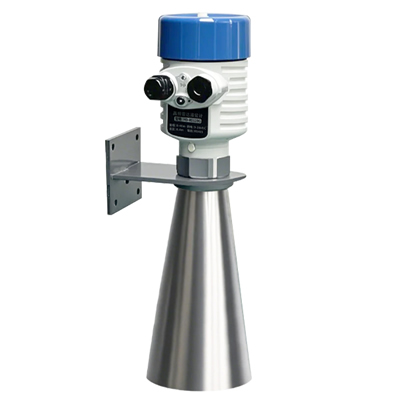

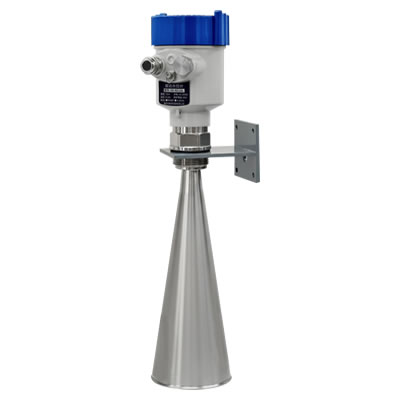

High frequency radar water level gauge HD-RD120G
- Measurement range: 10m, 40m
- Measurement accuracy: 3mm
- Resolution: 1mm
- Beam angle: 6 °
- Product description: The HD-RD120G radar water level gauge is a water level gauge independently developed by Chongqing Haydun Technology Co., Ltd. It adopts high-frequency microwave radar technology. The product adopts FM
-
Product Introduction
The HD-RD120G radar water level gauge is a water level gauge independently developed by Chongqing Haydun Technology Co., Ltd. It adopts high-frequency microwave radar technology. The product adopts FMCW mode, 80G lens radar technology, and signal processing adopts proprietary patented methods. It can work stably 24/7, and the measurement results are accurate and reliable. It is small in size, high in sensitivity, light in weight, non-contact measurement, strong in anti-interference ability, low in power consumption, stable in performance, and can adapt to complex terrain environment. It can be used in rivers, lakes, reservoirs, drainage pipe networks, agricultural irrigation areas and other fields.
Functional characteristics
※ Micro antenna design, planar microstrip radar technology, advanced and reliable technology.
※ Millimeter level high-precision real-time water level measurement, ultra-low blind spots, widely used.
※ RS485 Modbus RTU protocol, can be customized with other protocols for easy access to various software platforms.
※ Adopting non-contact methods, the sensor is not in contact with the water and is not affected by the hydrological environment.
※ Unique water surface fluctuation processing algorithm, stable data, unaffected by water surface fluctuations.
※ IP68 protection level, suitable for various outdoor environments, with a long service life.
Technical parameter
Measurement range: 10m, 40m
Measurement accuracy: 3mm
Power supply voltage: 9~24VDC
Resolution: 1mm
Beam angle: 6 °
Measurement blind spot: 0.2m
Radar wave frequency band: 80GHz
Working current: DC12V, 18mA
Digital interface: RS485 MODBUS RTU protocol
Protection level: IP68
Working temperature: -45~85 ℃
Working humidity: 0-95% RH, non condensing
Cable length: 10m, customizable
∷
