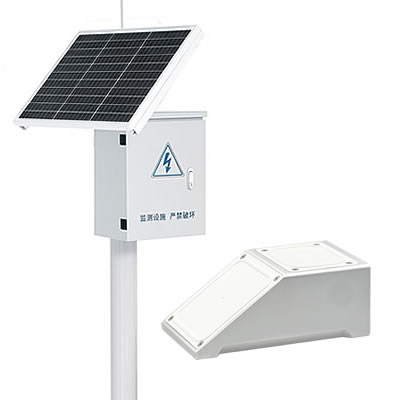

Radar flow monitoring system for water conservancy irrigation areas

Products

The modernized water conservancy irrigation district information system is based on the core framework of intelligent water conservancy such as water measurement equipment, communication network, data center, business platform, etc., and carries out the construction of modernized irrigation district information technology, which covers various aspects such as data collection, transmission, storage, application decision-making, and irrigation district water conservancy information service, etc. The system makes full use of modern information technology to deeply develop and widely utilize the irrigation district information resources. The system makes full use of modern information technology, in-depth development and extensive use of irrigation district information resources, greatly improving the accuracy of information collection and processing and the timeliness of transmission, to make timely and accurate feedback and prediction, to provide scientific decision-making basis for the irrigation management, and to comprehensively improve the efficiency and effectiveness of the irrigation district operation and management.

Compared with the traditional flowmeter, radar flowmeter reduces the pressure loss and the disturbance to the fluid, has the characteristics of not easy to damage, easy to maintain, long life and so on. In addition, the radar flowmeter using high-precision digital processing technology, the flow rate, water level and other data for real-time processing, making the monitoring data more accurate and reliable. In the irrigation district flow monitoring, radar flowmeter can realize the real-time measurement and data uploading function of channel water level, flow rate, flow rate and other data, through data analysis and processing, it can regulate the water resources allocation in time to ensure the balance of the ecological environment and the smooth operation of the comprehensive reform facilities of agricultural water price.

Functional Features

1, accuracy: radar flowmeter can accurately measure the flow of irrigation water, irrigation management and water allocation to provide an accurate basis.
2, reliability: due to the application of radar flowmeter environment may be more harsh, such as the need to work outdoors for a long time, so it is required to have reliability, stable operation.
3, adaptability: different types and sizes of irrigation channels require radar flowmeter adaptability, to meet different application requirements.
4、Convenience: radar flowmeter is easy to install and maintain, can quickly adapt to different working environments and needs.
5, intelligent: with the development of science and technology, radar flowmeter also has intelligent characteristics, can realize remote monitoring, data acquisition, data analysis and other functions, for irrigation management and decision-making to provide a more scientific basis.

system structure

The system consists of equipment layer, transmission layer, communication network and cloud platform. The equipment layer mainly consists of radar flowmeter, camera and other equipment; the transmission layer, i.e. telemetry terminal, mainly realizes data acquisition and data transmission logic; the communication network has 4G wireless transmission, wired broadband and other methods; the cloud platform includes cloud server, software platform and cell phone APP and other parts.

Irrigation district informatization system plays an important role in saving irrigation water, scientific and efficient management of irrigation districts as well as ensuring the safe operation of irrigation district projects. Irrigation district informatization equipment can improve irrigation efficiency and management efficiency, reduce operating costs, and ensure the sustainable development of irrigation districts.

Configuration list

software platform

The design of the system is based on GPRS data transmission technology and network technology, the software development of Chongqing Haidun Technology Co., Ltd. is designed in the way of B/S architecture.B/S structure has good expandability, there are no special requirements for the client, and there is no restriction on the number of users, only need to support the network and have the function of the browser.B/S mode is only to install the application program in the server, and the client doesn't need to install the program, directly use IE or other browsers to use, modify the application program is only related to the server, the client doesn't make any changes. B/S mode only installs the application on the server, the client does not need to install the program, directly using IE or other browsers can be used to modify the application is only related to the server, the client does not make any changes, the operation is simple, easy to maintain.
