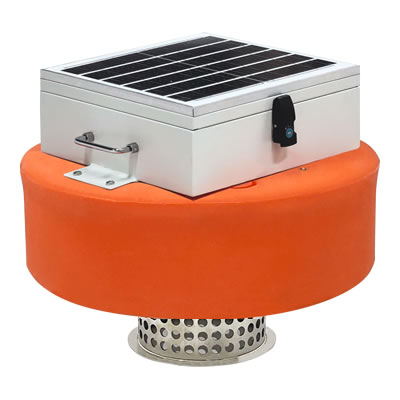

Buoy-type water quality monitoring station HD-WQF3100

Product Introduction

The buoy type automatic water quality monitoring station is an on-site automatic water quality monitoring laboratory set up in rivers, lakes, reservoirs, near-shore sea areas and other watersheds. Used for continuous automatic monitoring of water quality changes in the measured water body, objective records of water quality conditions, timely detection of abnormal changes in water quality, and then realize the waters or downstream of the water quality pollution forecasting, research on the diffusion of water bodies, self-purification rules, etc.. To achieve the purpose of mastering water quality and pollutant flux, preventing and controlling water pollution accidents, and providing technical services for the environmental protection management department.

Buoy-type automatic water quality monitoring station is a water quality monitor as the core, the use of sensor technology, combined with the buoy body, power supply system, data transmission equipment placed in the waters of the small water quality monitoring system.

Surface water quality automatic monitoring is the key task of water resources protection work, is the prevention of pollution, water quality warning one of the most important means. Through automatic on-line monitoring instruments for unattended real-time monitoring of water quality, and the use of modern information technology for data collection, transmission and storage, timely and accurate grasp of water quality conditions and dynamic trends. The project reflects the scientific and modernized technical means of water environment monitoring, which is of great significance to the environmental protection decision-making departments to make timely and effective water pollution prevention and management.

Functional features
※ Support access to dissolved oxygen (water temperature), PH, conductivity, turbidity, ORP, ammonia, COD, chlorophyll A, blue-green

※ algae, salinity, suspended solids concentration, transparency, oil in the water, chlorine ions, fluoride ions and other water quality sensors.

※ Support access to atmospheric temperature, atmospheric humidity, atmospheric pressure, PM2.5, wind speed and other meteorological sensors.

※ Support access to pressure water level meter to measure water level changes.

※ Timed collection, dormant mechanism, micro-power consumption design, generally set to collect once an hour.

※ Support data storage in place, can store 10000 data records. When the signal is poor, it will be stored automatically; when the signal is good, the device will automatically report the stored data records to the software platform without losing data.

※ Support data transmission through GPRS/4G wireless.

※ The protection level of the device is IP66, which will not damage the components when the device has an accident.

※ Unique micro-power consumption telemetry terminal can work continuously for about 15 cloudy and rainy days with fully charged lithium battery.
※ The water quality sensor can be replaced or self-calibrated for accurate measurement.

※ Support free access to cloud software platform, support customized protocol access to other cloud software platform.

※ The overall design is in line with relevant national and industry technical standards and specifications.

※ The equipment is characterized by practicality, economy, openness, security and advancement.

※ The accuracy and precision of the water quality data meet the requirements, and the synchronized monitoring data with the laboratory is within the allowable error.

※ The equipment used is simple in structure, reliable in performance and low in energy consumption, and the system can work for a long time under unattended conditions.

※ The cloud software platform supports real-time monitoring, map monitoring, data alarm, historical data query, data report, historical curve, cell phone APP and other functions.

※ The interface design of the cloud software platform is simple, beautiful and practical, with comprehensive functions and easy operation, which is suitable for monitoring and management personnel, and the database has the functions of management, analysis, query and secondary development.
System structure

Technical Parameters

Buoy material：olymer polyethylene

Structure material：Galvanized sheet with plastic spraying treatment

Dimension：Diameter and height about 700*850mm

Buoyancy：About 50KG

Resistance to wind and waves：3-4 grade

Water quality sensor (optional)：Dissolved oxygen, PH, conductivity, turbidity, water temperature, ORP, ammonia, COD, chlorophyll, blue-green algae, salinity, transparency, oil in water, etc.

Water level sensor (optional)：Support

Weather Sensor(Optional)：Atmospheric temperature, atmospheric humidity, atmospheric pressure, illumination, PM2.5,wind speed and other meteorological sensors.

Overall weight：Approx. 22.5KG (without anchor)

Anchor and anchor chain：Stainless steel anchor chain 20m, folding anchor 3.2KG

Power supply mode：Solar power supply

Power supply continuity：Can last more than 15 rainy and cloudy days for normal operation.

Communication mode：Support 4G/GPRS uploading to cloud platform.

Beacon signal light：Solar charging, automatic flashing at night

Protection grade：IP66
