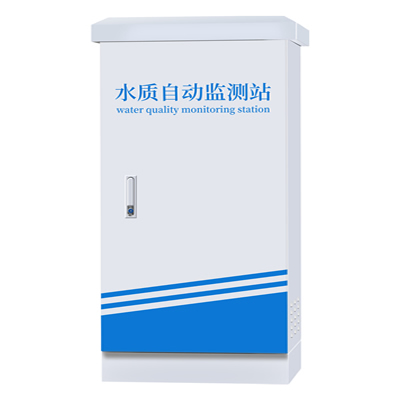

Micro water quality monitoring station HD-WQA3100

External dimensions: 600 * 450 * 1200mm
Power supply: solar or AC220V
Communication: 4G full network connectivity, five mode thirteen frequency
Protection level: IP65
Product description: Product description: Outdoor miniature water quality monitoring station is set up in rivers, lakes, reservoirs, parks, wetlands, hot springs, near-shore sea areas and other watersheds of the on-site a
INQUIRY

Product Overview

The miniature automatic water quality monitoring station is an on-site automatic water quality monitoring laboratory set up in the watershed of rivers, lakes, reservoirs, parks and wetlands, hot springs, and near-shore sea areas. It is used to continuously and automatically monitor the water quality changes of the tested water body, objectively record the water quality condition, discover abnormal changes in water quality in time, and then realize the water quality pollution forecast for the waters or downstream, and study the diffusion of the water body, self-purification rules, and so on. Achieve the purpose of mastering water quality and pollutant flux, preventing and controlling water pollution accidents, and providing technical services for the environmental protection management department.

Miniature automatic water quality monitoring station is a water quality monitor as the core, the use of sensor technology, combined with outdoor monitoring cabinets, water collection units, power supply system, data transmission equipment, placed in the waterside of the shore of the small water quality monitoring system.

Automatic monitoring of surface water quality is the key task of water resources protection, is the prevention of pollution, water quality warning one of the most important means. Through automatic on-line monitoring instruments for unattended real-time monitoring of water quality, and the use of modern information technology for data collection, transmission and storage, timely and accurate grasp of water quality conditions and dynamic trends. The project reflects the scientific and modernized technical means of water environment monitoring, which is of great significance to the environmental protection decision-making departments to make timely and effective water pollution prevention and management.
Functional features

※ Support access to dissolved oxygen (water temperature), PH, conductivity, turbidity, ORP, ammonia, COD, chlorophyll A, blue-green algae, salinity, suspended solids concentration, transparency, oil in the water, chlorine ions, fluoride ions and other water quality sensors.

※ Support access to atmospheric temperature, atmospheric humidity, atmospheric pressure, PM2.5, wind speed, wind direction, rainfall and other meteorological sensors.

※ Timed collection, sleep mechanism, micro-power consumption design, solar power supply can be stable operation for a long time.

※ Supports local display of water quality data and touch screen setting of sensor acquisition parameters.

※ Support data transmission through GPRS/4G wireless mode.

※ The equipment protection level IP65, realize the outdoor rainproof function.

※ Unique low power consumption data collector, in the case of lithium battery fully charged, can work continuously for about 15 rainy days.

※ The water quality sensor can be replaced or self-calibrated for accurate measurement.

※ Support free access to cloud software platform, support customized agreement to access other cloud software platform.

※ The overall design is in line with national and industry-related technical standards and specifications.

※ The equipment is characterized by practicality, economy, openness, safety and advancement.

※ The accuracy and precision of water quality data meet the requirements, and the synchronized monitoring data with the laboratory is within the allowable error.

※ The equipment used is simple in structure, reliable in performance and low in energy consumption, and the system can work for a long time under unattended conditions.

※ The cloud software platform supports real-time monitoring, map monitoring, data alarm, historical data query, data report, historical curve, cell phone APP and other functions.

※ Cloud software platform interface design is simple, beautiful, practical, comprehensive and easy to operate, suitable for monitoring and management personnel, database with management, analysis, query and secondary development functions.

Technical Parameters

Overall Dimension：600*450*1200mm

Equipment material：Carbon steel plastic spraying, rainproof structure

Power supply：Solar power supply, or AC220V power supply

Working Temperature：0～65℃

Working Humidity：≤95%RH (non-condensing)

Inlet water flow rate：9.5L/min

Water inlet pressure：0.24Mpa

Data display：LCD touch screen display

Water quality sensor (optional)：Dissolved oxygen, water temperature, PH, conductivity, turbidity, ORP, ammonia, COD, chlorophyll, blue-green algae, salinity, SS, oil in water, residual chlorine and so on.

Meteorological sensors (optional)：Atmospheric temperature, atmospheric humidity, atmospheric pressure, PM2.5, wind speed, wind direction, rainfall and other meteorological sensors

Overall weight：Approx. 55KG (excluding water collection unit)

Working current Approx.：3.5A in operation, approx. 90mA in standby mode

Power supply continuity：Maximum 15 rainy and cloudy days of normal operation

Communication mode：4G full network pass, five modes and thirteen frequencies

Protection grade：IP65
