Universal flowmeter

  • Drainage Network Doppler Flow Meter HD-DPW420

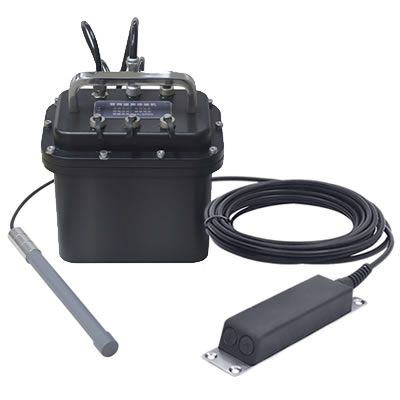

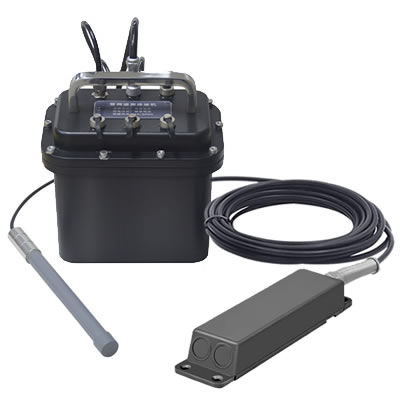

Drainage Network Doppler Flow Meter HD-DPW420

Drainage Network Doppler Flow Meter HD-DPW420

  • Monitoring parameters: liquid level, flow rate, etc
  • Power supply: lithium sub battery
  • Transmission method: 4G wireless
  • Waterproof grade: IP68
  • Product description: HD-DPW420 series drainage network flowmeter, is the sensor, RTU, communication, power supply system, etc. integrated together, with high-performance low-power micro-controller as the core, with multip
  • INQUIRY

Product Introduction

HD-DLW120 series drainage network level meter, is the sensor, RTU, communication, power supply system, etc. integrated together, with high-performance low-power micro-controller as the core, with multiple sensor interfaces and multi-channel reporting function, is the collection of data acquisition, storage, communication and remote management and other functions in one of the intelligent telemetry digital sensors. The product adopts high-performance industrial-grade 32-bit communication processor and industrial-grade wireless module, with embedded real-time operating system as the software support platform, regularly collects the water level and transmits the information to the platform, which can meet the needs of a variety of different industry applications.
Drainage pipe network level meter, internal integration of dual redundant sensors: radar water level meter and pressure type water level meter. It can be used for network communication through 4G/GPRS, etc. It is especially suitable for monitoring sites without utility power supply conditions and with high waterproof/dustproof requirements, and is mainly used in monitoring scenarios such as water level monitoring of deep underground wells, water level monitoring of rainwater pipeline networks, and water level monitoring of drainage pipeline networks.
Functional features
※ Integration of water level sensor, RTU, housing and battery to realize water level measurement, data storage and transmission.
※ Redundant design of two water level sensors, compatible with a variety of complex manhole conditions, to ensure the normal operation of the equipment.
※ 4G (full network) remote communication, downward compatible with 3G/2G.
※ Abnormal automatic warning, timely detection of potential accidents.
※ The working mode supports two modes: timed wake-up and real-time online.
※ Wide temperature design, high and low temperature resistance, strong electromagnetic interference resistance. Wide temperature design, high and low temperature resistance, strong electromagnetic interference resistance, applicable to a variety of harsh sites.
※ Provides FLASH data storage space, adopts complete system protection mechanism and anti-drop mechanism to ensure that the terminal is always online.
※ Supports a variety of operating modes (including self-reporting, query, etc.), minimizing power consumption.
※ Configuration mode: serial port configuration, Bluetooth configuration, remote configuration.

Technical Parameters

Radar water level meter parameters

Measuring range：0.2~10m

Resolution：0.001m

Measurement accuracy：±3mm

Radar frequency：80GHZ

Wave emission angle：6°

Parameters of pressure type water level meter

Range：0~10m

Accuracy grade：0.1%FS

Output Signal：RS485 (standard Modbus-RTU protocol)

Cable length：10m

Protection class：1P68

Parameters of Pipe Network Monitoring Mainframe

Communication mode：4G/GPRS

Setting mode：Serial setting, remote setting

Waterproof grade：IP68

Working Mode：Self-annunciation, idle sleep, wake-up timer

Battery Type：Lithium-ion battery

CPU：32-bit processor, running frequency 100MHZ

Dimension：170D×175H
