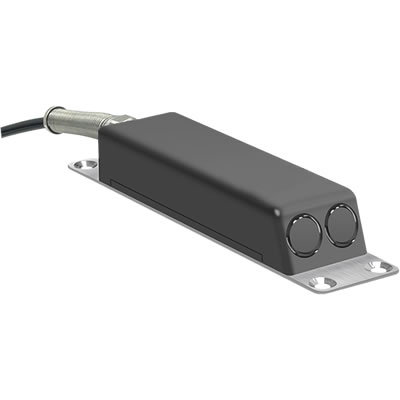

  • Ultrasonic Doppler Flow Meter HD-DPF420
Ultrasonic Doppler Flow Meter HD-DPF420

Ultrasonic Doppler Flow Meter HD-DPF420

  • Water level range: 0-10m
  • Velocity range: 0-10m/s
  • Flow algorithm: velocity area method
  • Output: RS485
  • Product description: HD-DPF420 ultrasonic Doppler flowmeter is a flow rate and flow monitoring instrument applied to rivers, nullahs and pipelines. It adopts ultrasonic detection technology, high measurement accuracy, hig
  • INQUIRY
Product Introduction
HD-DPF420 ultrasonic Doppler flow meter is suitable for river, nullah, pipeline and other scenarios to monitor the flow rate, water level, temperature, instantaneous flow rate and cumulative flow rate of the waters online.
The instrument adopts ultrasonic Doppler principle to measure the flow velocity, ultrasonic time difference method or hydrostatic pressure method to measure the water level, and calculates the flow rate by setting the cross section. Doppler flow meter has the characteristics of compact structure, no rotating parts, long life, easy to use, maintenance-free, and its widely used in sponge city, water supply/drainage network, black smelly water body, natural river, nullahs, reservoirs, flow field analysis of scientific research, liquid level detection and other scenarios.
Functional features
※ The sensor supports the measurement of instantaneous flow, cumulative flow, flow rate, water level and water temperature.
※ Strong adaptability, can measure correctly even under extremely low flow conditions.
※ Supports flow accumulation in a variety of channel types, such as rectangular, trapezoidal and circular channels.
※ Flow velocity range up to 10m/s, capable of measuring flow under high flow conditions during floods.
※ Accurate measurement, flow rate measurement accuracy is accurate to 1mm/s error.
※ Support RS485 communication interface, MODBUS RTU communication protocol, can also be customized protocol.
※ With data saving function, can save the setup parameters and cumulative flow rate value in the case of long-term power failure.
※ IP68 protection level, waterproof and dustproof, long service life.
※ Flow rate area measurement, Doppler flow principle, intelligent integration algorithm, more accurate measurement.

Technical Parameters

Model：HD-DPF420

Water Level Parameters

Water level type：Ultrasonic, pressure type

Water level range：0~10m

Water Level Resolution：0.001m

Water Level Precision：±0.1%FS

Flow Rate Parameters

Flow rate range：0~10m/s

Accuracy of flow velocity：0.001m/s（<=5m/s ）；0.02m/s (>5m/s )

Flow rate resolution：0.001m/s

Working Parameters

Supply Voltage：12~24VDC

Working Current：Working current <70mA; Sleeping current <25mA

Output Mode：RS485, MODBUS RTU protocol

Output Data：Water level, flow rate, instantaneous flow rate, cumulative flow rate, water temperature

Protection level：IP68

Working pressure：<0.6MPa

Lightning protection：Support

Flow rate algorithm：Flow rate area method

Appearance parameters

Housing material：Metal, ABS engineering plastic, rubber

Cable length：10m, customizable

Product weight：0.55KG, excluding cable and bracket.

Overall Dimension：165*50*30mm, without accessories

Flow host (optional)parameters

Power supply mode：9~28VDC

Overall Dimension：160×188×106mm

Display unit：LCD touch screen

Input and output：RS485 serial interface, 4~20mA analog interface

Data Browsing：Quickly view real-time data, historical data records

PREVIOUS：Radar velocity meter HD-RDC320 NEXT：Drainage Network Doppler Flow Meter HD-DPW420

RELATED PRODUCTS

Radar Flowmeter HD-RDF420

Radar Flowmeter HD-R

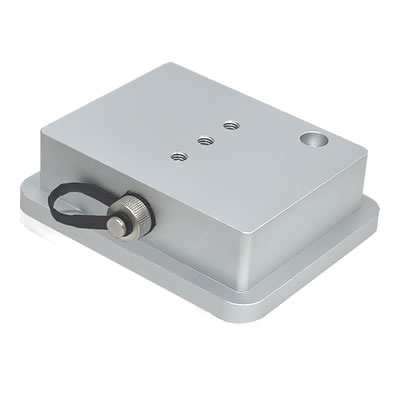

Radar velocity meter HD-RDC320
