Universal flowmeter

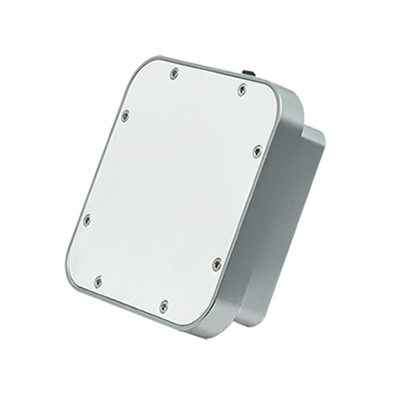

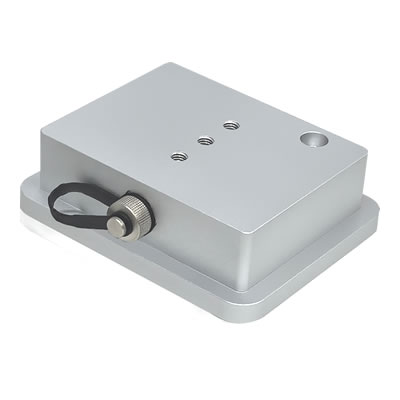

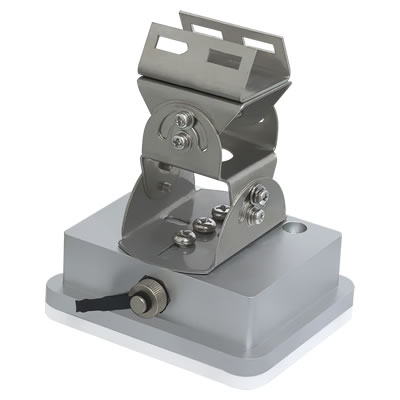

Radar velocity meter HD-RDC320

Range: 0.05-20m/s
Accuracy: ± 0.01m/s
Resolution: 0.001m
Velocity direction: bidirectional
Product description: HD-RDC320 radar velocity meter integrated plane microstrip array antenna, radio frequency circuit and signal processing circuit, energy concentration, low power consumption; instrument integrated vert
INQUIRY

Product Introduction
HD-RDC320 radar velocity meter integrated plane microstrip array antenna, radio frequency circuit and signal processing circuit, energy concentration, low power consumption; instrument integrated vertical angle compensation, flow rate averaging, signal strength detection, serial communication control and other functions, non-contact radar flow measurement system speed measurement equipment is not subject to corrosion of sewage, not subject to the impact of sediment, simple civil engineering, less subject to the impact of water damage, easy to maintain and safeguard the personnel! Safety. Not only can be used for ordinary environmental monitoring, but also particularly suitable for undertaking urgent and dangerous observation tasks.
Functional characteristics
※ Microwave radar is not affected by temperature and humidity, pressure, wind and rain and other conditions, can work stably in all-weather.
※ Measurement is not affected by floating objects in the water, sediment, air bubbles and large changes in water level, high precision.
※ Support RS485 communication interface, MODBUS RTU communication protocol, can also be customized protocol.
※ With data saving function, it can save the setting parameters in case of long-term power failure.
※ Non-contact measurement, no pollution, no loss, long service life.
※ Adopting linear FMCW (Frequency Modulated Continuous Wave) mode, it can accurately measure the flow velocity within the measuring range.
※ Capable of measuring under high flow velocity conditions during flooding.
※ Anti-reverse connection and over-voltage protection.
※ It has the function of automatic identification of bi-directional flow velocity.

Technical Parameters

Model：HD-RDC320
Measuring Range：0.05~20m/s
Measurement Accuracy：±0.01m/s
Radar Antenna：Planar microstrip array antenna
Radar band：24GHZ
Resolution：0.001m
Beam angle：12°×12°
Flow direction：Bidirectional
Working Voltage：9~24VDC
Working Current：DC12V，100mA
Output Mode：RS485, MODBUS RTU protocol, customizable
Protection level：IP68
Operating Temperature：-40~75℃
Working Humidity：0~95%RH, non-condensing
Shell Material：Aluminum alloy, ABS
Cable Length：10m, can be customized
Overall Dimension：108×88×45mm, without accessories
